BDE73 Manul Thermostats

Publish Date:2017-06-22 Source: Author:David Wang Views:111 Share this with your friends:

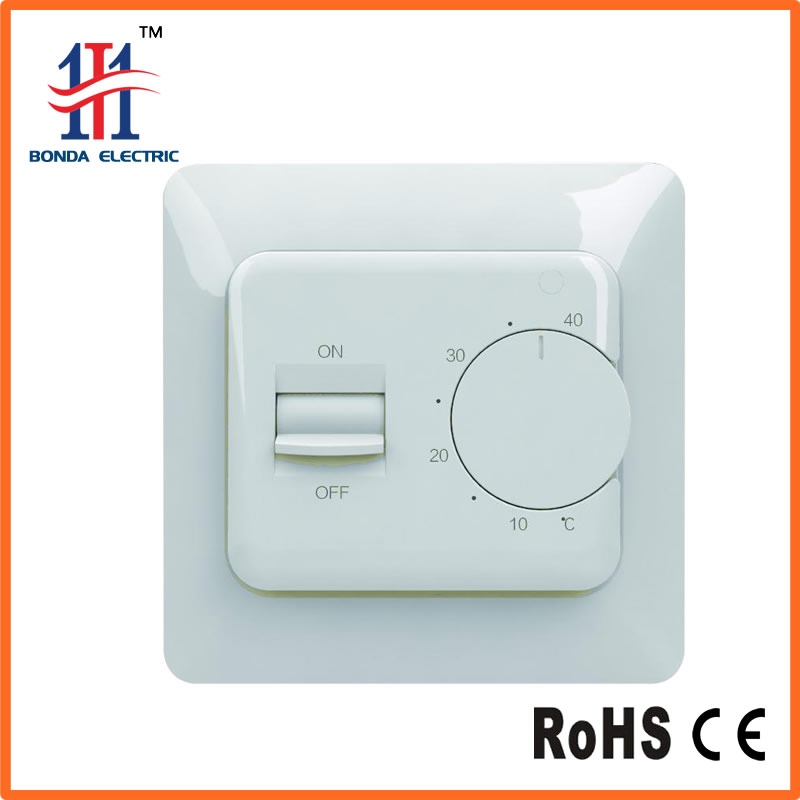

Product Image

Description

Technical Data:
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃ (E73.33&E73.36)
Setback temperature: 5℃ (E73.33&E73.36)
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m

Packing & Shipping

Packing Step & Shipping

Order Details

Order Details For Underfloor Heating Mats

Installation Manual Download

Installation manual: Underfloor Heating Mat.PDF Installation manual: Underfloor Heating Mat
