FeelWarm Snow Melting Cable

Publish Date:2017-07-27 Source: Author:David Wang Views:216 Share this with your friends:

The SN-cable is an electrically heated cable designed to prevent snow and ice accumulation around the home or facility. such as on driveway,walkways and stairs and so on.

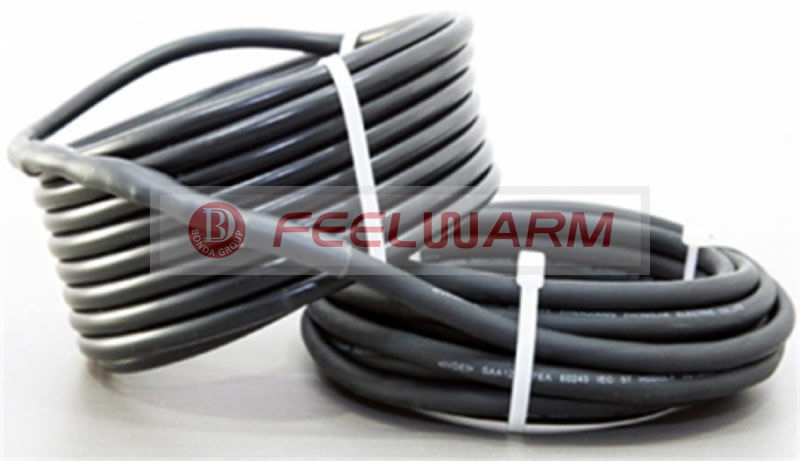

Product Image

Product Name:Snow Melting Heating Cable SN-cable

Introduction:

The SN-cable is an electrically heated mat designed to prevent snow and ice accumulation around the home or facility. such as on driveway,walkways and stairs and so on.
In winter, when the accumulated snow on walkways, parking garage, loading ramps, stairways and other areas, it will bring problem to people’s life. Electric snow melting systems can keep walkways, parking garage, loading ramps, stairways and other area.

Technical data:

Cable construction: Twin conductor
Rated voltage : 230V  400V
Power output : 30W/m
Heating element length: 10m to 120m
Bending radius: 38mm
Outside diameter :  6.5mm
Protective jacket: PVC
Insulation: Fluoropolymer
Shield: Al foil+Cu wire
Max.rated Temp : 105℃
Min.installation Temp: 5℃
Cold lead : 6m length

Features:

Single point connection
Robust ,efficient,and safe
Easy and flexible installation
15-year limited warranty against manufacturing defects
Twin conductors cable
Thin, only 6.5mm
Emits zero EMF(electromagnetic fields)
Durable construction

Application:

Install the SN-cable snow melting system provides a permanent solution to the problems caused by cold weather when snow and ice accumulation. It can be used both outdoor and indoor environment.
Ideal for driveways, parking lots,sidewalks,  stairs ,  ramps,bridges and many other applications.
For used under concrete ,asphalt,paver or stone and ceramic or stone tile.
Roof & gutter de-icing.
Subfloor energy storage heating.

Packing & Shipping

Packing Step & Shipping

Order Details

Order Details For Underfloor Heating Mats

Installation Manual Download

Installation manual: Underfloor Heating Mat.PDF Installation manual: Underfloor Heating Mat
